The battery charger for your 12 V or 6 V Lead Acid battery.
Display Shopping Cart
Charger Specification : Lead Acid battery Smart Charger , 3.0 A out put per hour for 6V & 12V Lead Acid Battery with 3 stages floating for Worldwide use.
Stock number
CH-LA0612
---

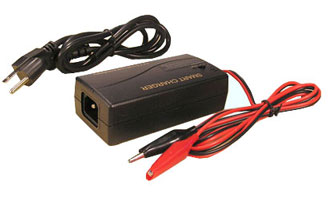

Smart charger for 6 v to 12 V Lead Acid battery, 3A. out put per hour. Priced at $21.95 each.
Specifications
Alligator Clips is installed in output terminal with 12" cable (red clip is positive)
The smart charger can be used worldwide and features with 3 stages charging , It will charge 6V or 12V lead acid battery. With built in auto shut off sensor to prenvent overcharging
Weight: 15 Oz. (425 grams)
INPUT
AC input voltage 110 to 240 VAC Worldwide power support
Input frequency 50-60Hz
Inrush current 10A at 25
o
C, cold start
Input Current Max 2.0A
Efficiency 80% at rating power, 115VAC 50Hz
CHARGE
The work range of this charger is best between 6Ah to 20Ah battery
Reverse Polarity Protection: NO
Short Circuit Protection: Yes
OUTPUTS
Charging Current : 3.0 A
with 5 feet long cable and one set of clips
ACTIVE STATE
For Charging 6V SLA Battery:
Active State
Model
Output current
Output voltage
Bicolor LED
1.Fast Charge
CC mode
3.0A
7.3V
Red
2.Continue Charge
CC&CV mode
3.0A or below
6.9V+/-0.20V
Red
3.Stand-by charge
CV mode
<0.6A about
6.9V max
Green
For Charging 12V SLA Battery:
Active State
Model
Output current
Output voltage
Bicolor LED
1.Fast Charge
CC mode
3.0A
14.5V
Red
2.Continue Charge
CC&CV mode
3.0A or below
13.8V+/-0.20V
Red
3.Stand-by charge
CV mode
<0.6A about
13.8V max
Green
Charging time:
3.0 hours for 7Ah
8.0 Hours for 20Ah
Max. Output power: 48W
The product is
IN STOCK
